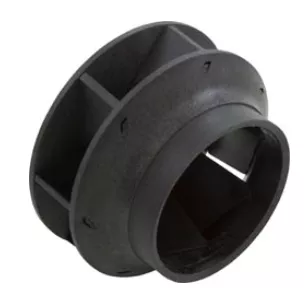

5Hp Viper Impeller 310-2620
Closed face impeller made for the Viper pump by Waterway Plastics. Rated at 5.0hp, it is used in a Waterway Viper pump wet end, and must be installed on a 5.0hp (or greater) thru bolt motor. Shaft seal sold separately, see PSR-200
| Impeller Type | Closed Face |
| Impeller Diameter OD | 3-11/16″ |
| Vane Width ID | 13/16″ |
| Eye Diameter OD | 2-5/8″ |
| Eye Length | 3/4″ |
| Impeller Width OD | 1″ |
| Seal Seat Depth | 3/16″ |
| Shaft Length | 1-5/8″ |
| Shaft Diameter OD | 5/8″ |
| Seal Seat Diameter OD | 1-1/4″ |
| Manufacturer | Waterway |
| Pump Application | Viper |
