Name: AquaStar PipeLine Filters
Brand: hotpoolzoneus.com
SKU: PLF27000
Price: 478.30 USD
Availability: InStock

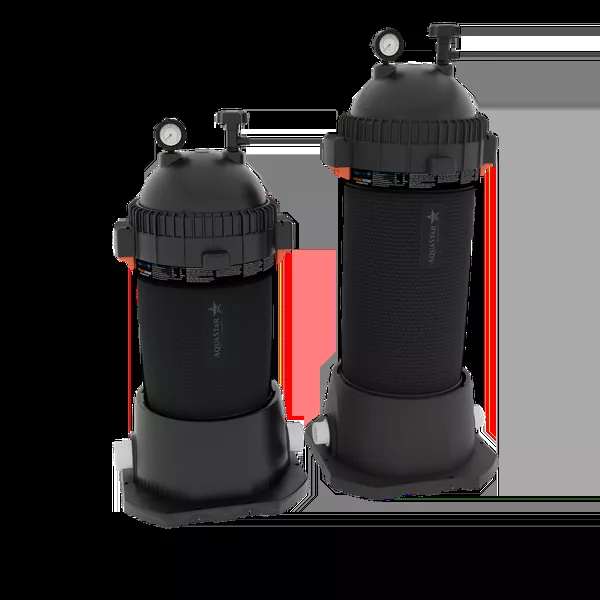

AquaStar PipeLine Filters

AVAILABLE IN TWO SIZES

AquaStar PipeLine Filters:

Model PLF27000
- Commercial: 27,000 gallons
- 6-Hour Turnover Capacity
- Residential: 108,000 gallons
- 12-Hour Turnover Capacity

Model PLF27000

Model PLF35000
- Commercial: 35,000 gallons
- 6-Hour Turnover Capacity
- Residential: 144,000 gallons
- 12-Hour Turnover Capacity

Model PLF35000

Gallons calculated per ISPSC

Filter Model: PLF27000 / PLF35000
Filter area (sq.ft): 200 / 250
Residential Design Filtration Flow Rate (gpm): 150 / 200
Public: Design Filtration Flow Rate (gpm): 75 / 99
Public: Pool 6-Hour Turnover Capacity (gallons): 27,000 / 35,640
Public: Pool 8-Hour Turnover Capacity (gallons): 36,000 / 47,520
Residential: 12-Hour Turn Over Capacity (gallons): 108,000 / 144,000
Max. Working Pressure (psi): 50 / 50
Max. Flow Rate (gpm): 150 / 200
Replacement Cartridge (model): PF27000 / PF35000
Min. Clearance Vertical-Horizontal (in): 61 / 76
Maximum water temperature: 110°F

*Local residential swimming pool building, and energy efficiency codes may specify lower filtration flow rates

Features

Outperforming cartridge filters twice its size hydraulically and in clean-ability.

Sizing by Square footage is over.

Performance is king.

Superior performance in three distinct categories

Safety and Ease-of-Access

Pipeline Filters’ patented double-locking system allows for safe, quick, and easy depressurization. This makes Pipeline Filters extremely easy to access compared to filters that use a traditional clamp.

Filtration Performance

Pipeline Filters passed the NSF water clarity (turbidity reduction) test with just 1 turnover, similar to DE filters. Other cartridge filters typically take up to 5 turnovers to pass the same test. Engineered pleat spacing, 64% larger core openings, and patented uniform tank design allow for more uniform flow from bottom to top, providing best-in-class filtration.

Hydraulic Performance

Pipeline Filters provide top-tier hydraulic performance, as shown in the chart to the right. These filters continue to outperform even after the first cleaning of the filter and cartridge element. Head loss in a Pipeline Filter only increases by 2% after cleaning according to instructions (up to 50% is allowed for NSF certification). Less head loss at the filter provides less stress on the pump, saving energy and money.

Like DE filters, Pipeline Filters passed the NSF turbidity test in one turnover.

Claim backed by NSF Data
