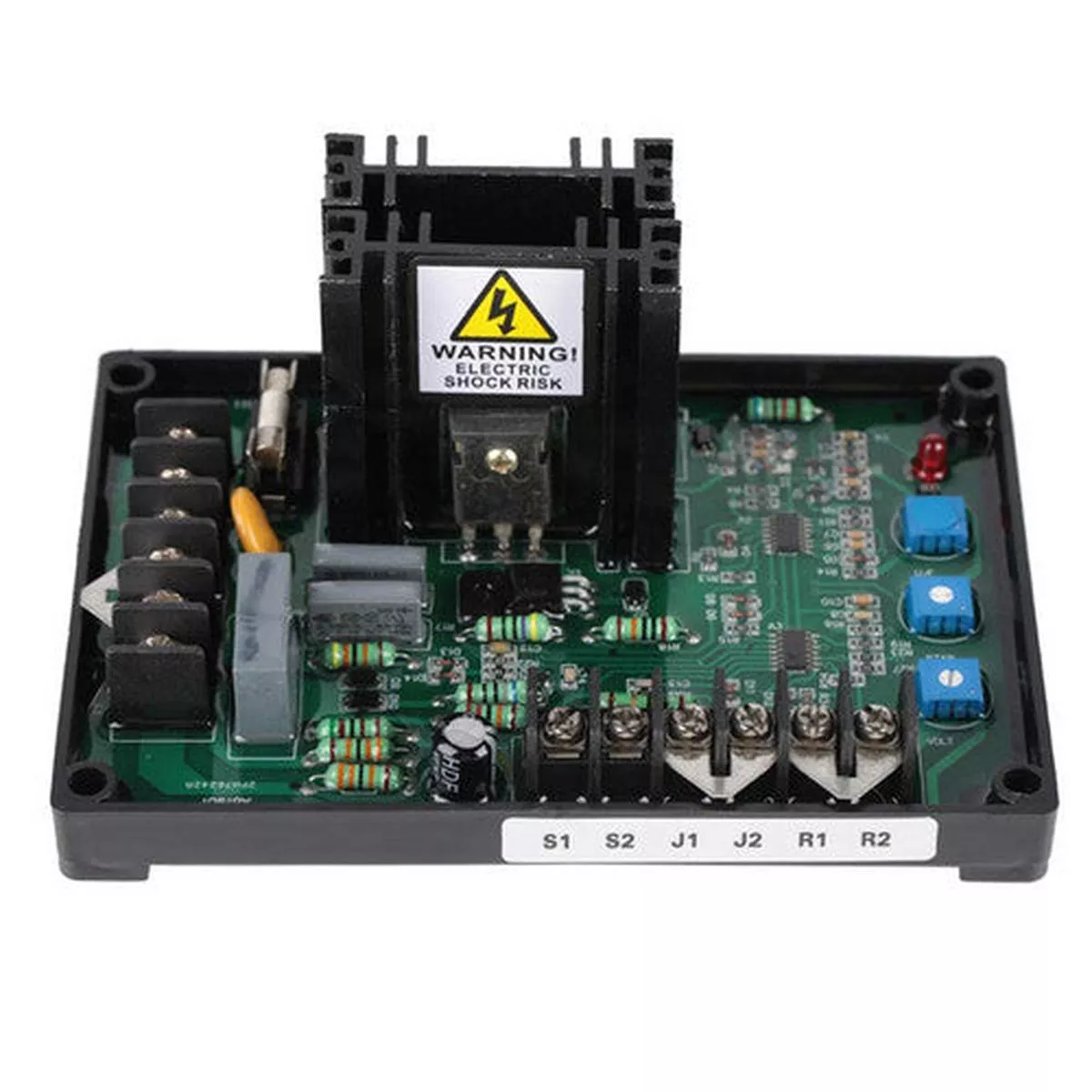

Automatic Voltage Regulator GAVR-15A GAVR15A for Genset Generator Accessories

Part Name:Automatic Voltage Regulator/AVRManufacturing Part Number:GAVR15A, GAVR-15AApplication: For GensetSpecification:
Model: GAVR-15A
Input power: 170-265V AC 50/60HZ
Maximum output: 15A, 95A DC (10seconds)
Voltage mediation rate: 0.5%
Generator field resistance: Minimum 9 ohms
External potentiometer: 8% for 1K ohm 1/2W potentiometer
Voltage establishment (initial): The voltage is automatically established when the residual magnetization voltage is greater than 6V 25HZ.
Low frequency protection: Protection circuit with output voltage dropping when the number of revolutions of the built-in generator decreases
Operating temperature: 40-60
