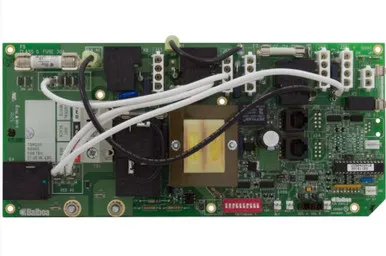

Balboa VS-504SZ Circuit Board 54638-01
VS504SZ is a serialstandard replacement Balboa circuit board.
Works with Balboa control panels that use an 8 pin phone style plug/cord.
Value Series circuit board uses Balboa’s patented M7 technology.
Also replaces:
- 55637 (Balboa)
- OP33-0612-08CB (Artesian)
- 107-961 (Coleman)
- 3-60-6033
Power Requirements: 240VAC, 60hz for North America, class A GFCI protected Service (circuit breaker rating = 50a max)
4 wires – hot, hot, neutral, ground
Pump 1 , 2-speed
Pump 2, 1-speed
240v ozone
12v spa light
120v av stereo
240v 5.5kw heater output (if running heater at 120v, then output is appx 25%)
Optional Device: 240v circ pump.
Note ozone and circ pump must be the same voltage if using these 2 devices together.
