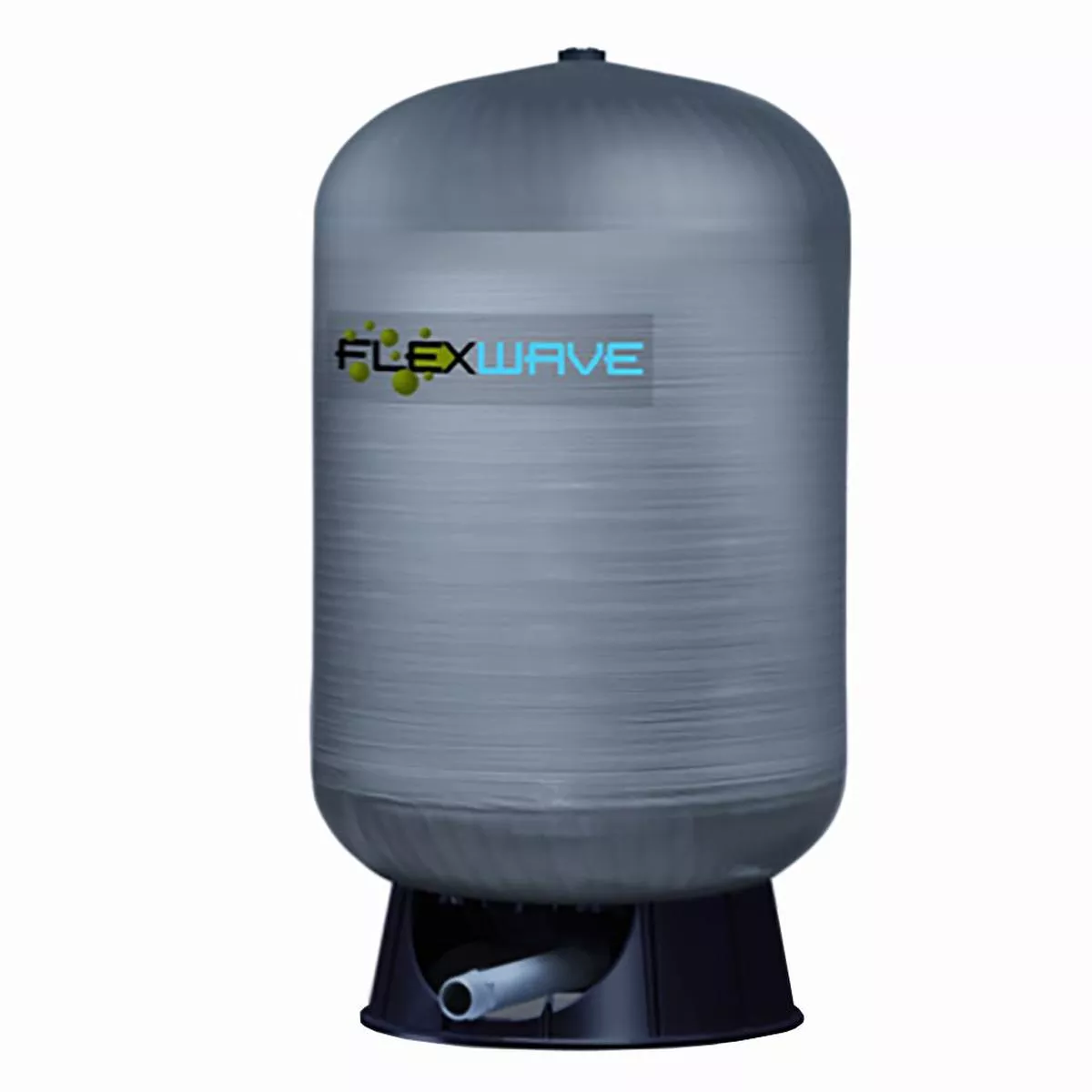

The Flexwave FWRO Composite Storage Tank is made up of a polypropylene liner that ensures no leaking issues. The fiberglass wound outer shell increases the integrity of the strength of the shape of the tank.
Specifications:
- Volume: 82 Gal/302.4 L
- Connection: 1-1/4″ NPT Male
- Max Working Pressure: 125 psi/8.62 bar
- Max Working Temperature: 120F/48.9C
Materials Of Construction:
- Outer shell: Continuous wound fiberglass and high-temperature epoxy resin
- Inner shell: Seamless, spun welded construction
- Connection: NPT male thread, rigid Sch. 80 PVC
- CAD-2 Water Chamber:
- 100% butyl diaphragm
- Polypropylene lower
- Air valve: Brass with rubber O-ring seal
