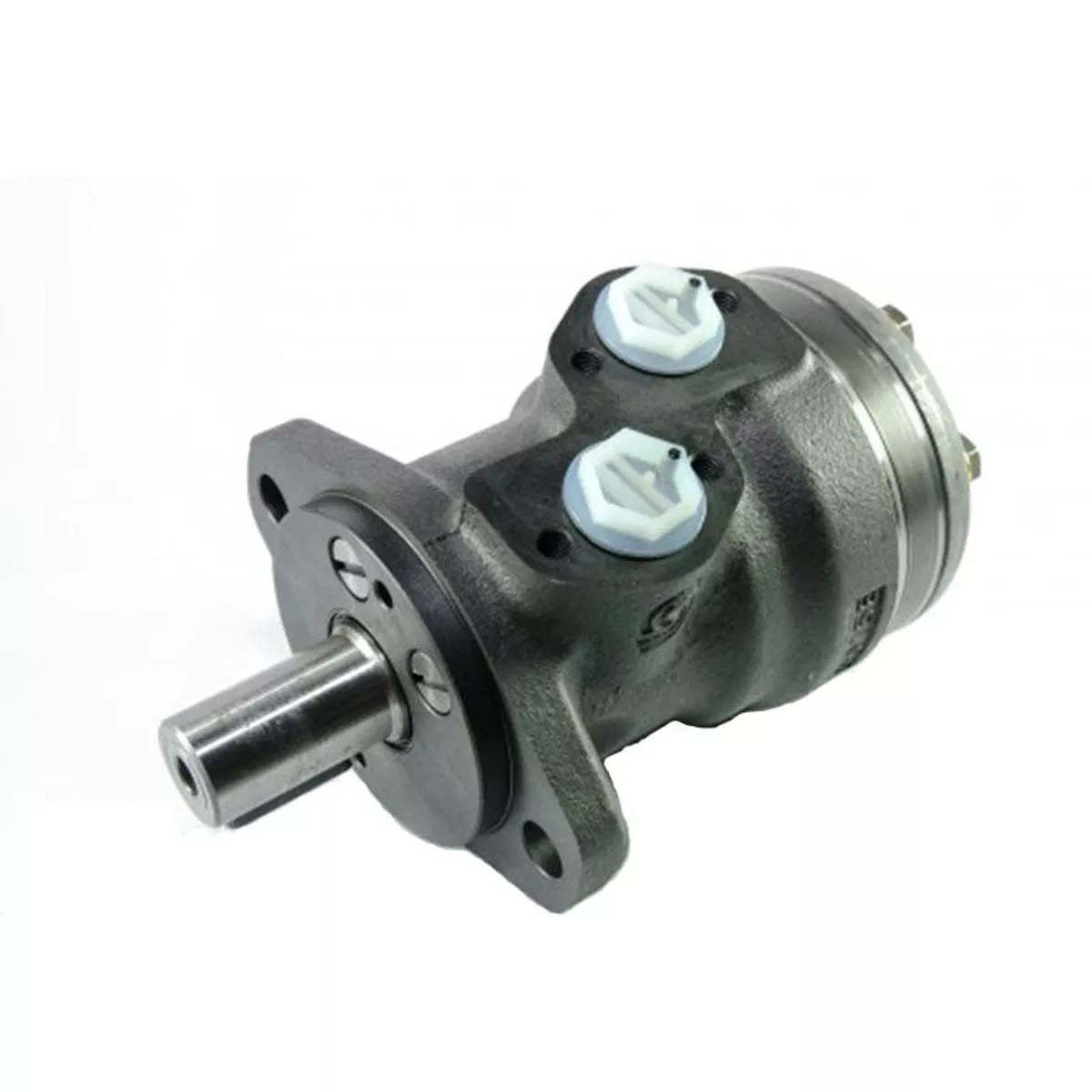

Hydraulic Orbital Motor OMP125 – 151-0613

Part Name:Hydraulic Orbital Motor
Manufacturing Part Number: OMP125 – 151-0613,OMP x 125 – 11185743
Specification:Type: OMPMotor Size:125Geometric displacement: 125cm/[7.65in]
Max speed cont: 480rpm
Max speed int: 600rpm
Max torque cont: 240Nm/[2120lbf in]
Max torque int: 290Nm/[2570lbf in]
Max output power cont: 10.0kW/[13.4hp]
Max output power int: 12.0kW/[16.1hp]
Max pressure drop cont: 140bar/[2030psi]
Max pressure drop int: 175bar[2540psi]
Max pressure drop peak: 225bar/[3260psi]
Max oil flow cont: 60L
