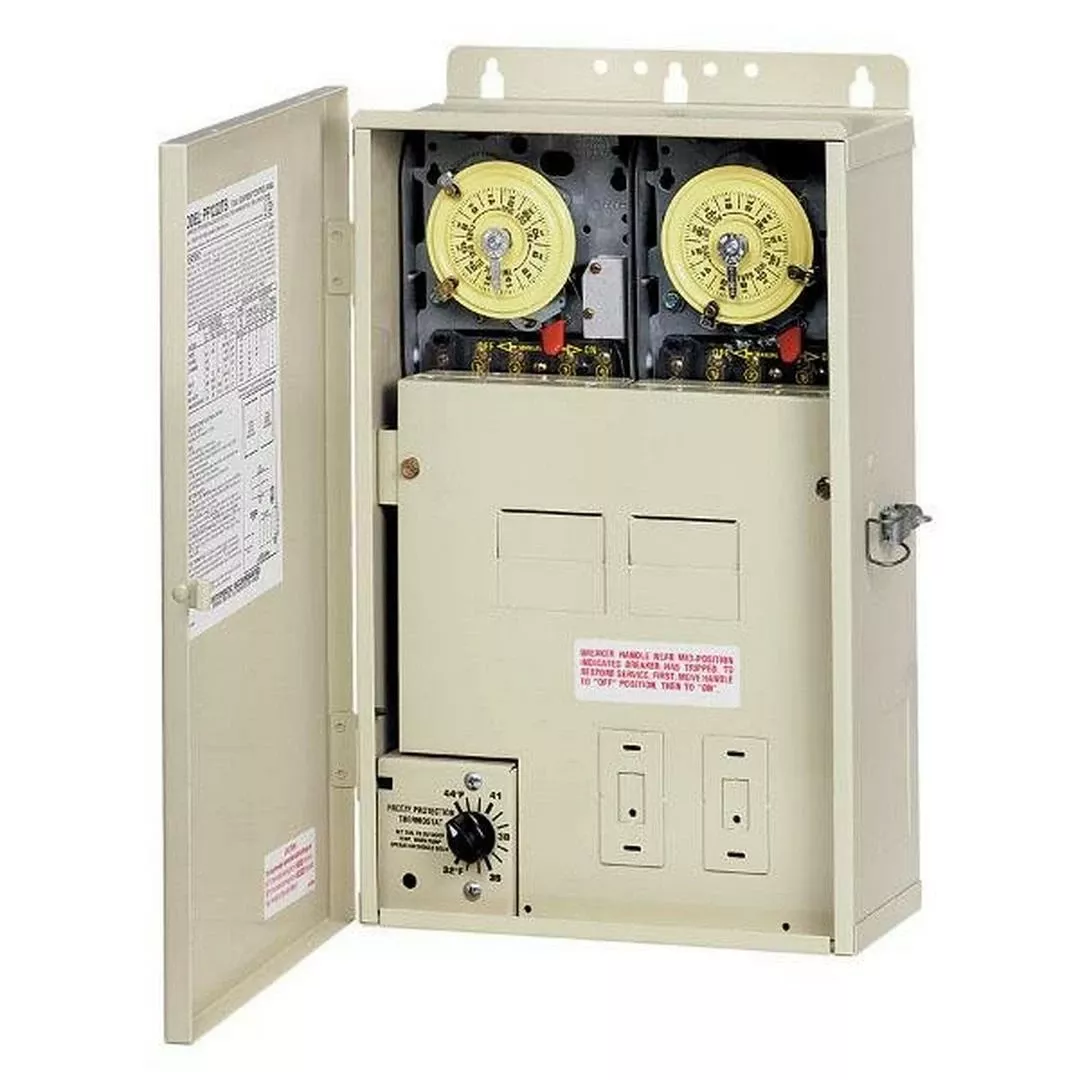

Freeze Protection Controls turn the pump and the heater on when the outdoor temperature drops below the temperature set by user-adjustable thermostat.
- Case: 16-1/2 (41.9 cm) H x 10-7/8 (27.6 cm) W x 4-1/4 (10.8 cm) D, 0.048 steel with electrostatically applied beige finish.
- Knockouts: Two 1/2, three combination 1/2-3/4, and two combination 3/4-1 knockouts on the bottom. Four 1/2, three combination 1/2″ – 3/4″ on the back. One combination 3/4-1 on the left side. One 1-3/4 x 2-3/4 knockout on the right side for mounting switches and GFCI.
- Panel Rating: 100 Amp max., 120-240 VAC or 120-208 VAC single phase – 60 Hz.
- Thermostat Range: 44 F – 32 F with 5 degrees differential.
- Agency Approval: CSA/C-US
These heavy-duty Freeze Protection Controls are designed specifically for pools requiring one or two time switches and protect the pool and spa equipment and plumbing against freeze damage. They turn the pump and the heater ON when the outdoor temperature drops below the temperature set by the user-adjustable thermostat. In addition, they have a provision to install switches inside or GFCI receptacle on the side of enclosure.
| Voltage: |
240V |
| Control System Type: |
Sensor Kit |
| Product Type: |
Automatic Control |
| Manufacturer: |
Intermatic |
| Product Type: |
Pool Part |
