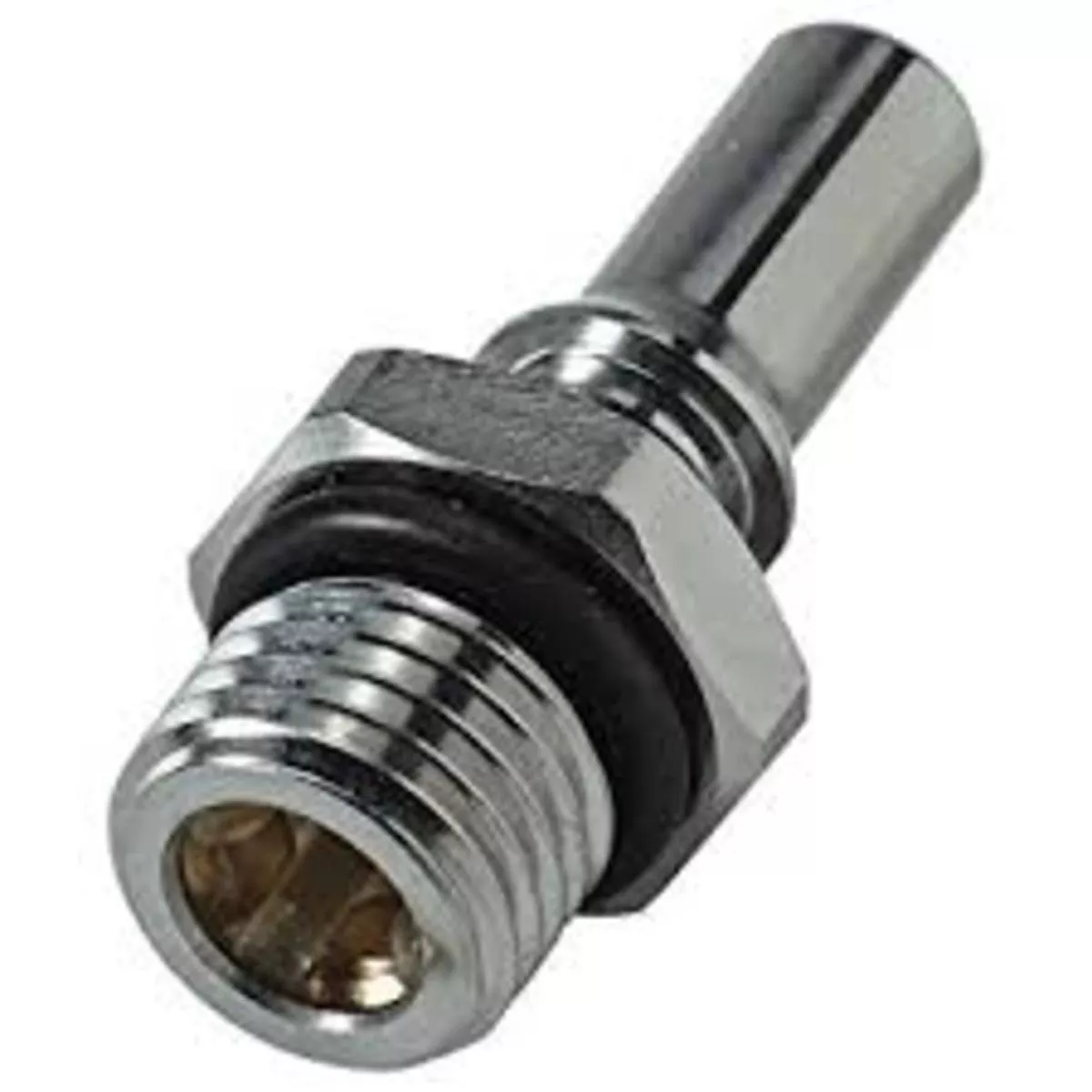

LQ2 Series provides ultra-reliable, drip-less connections and disconnections that protect valuable electronics. Designed specifically for liquid cooling applications, the LQ2 offers a high-flow capacity to optimize liquid cooling system performance. LQ2 uses CPC developed valve technology that eliminates drips and is able to withstand long-term use.
Specifications:
- Material: Brass
- Material Finish: Chrome
- Color: Chrome with cool blue
- Mounting Option: Thread
- Pressure Range: Vacuum to 200 psi, 13.8 bar
- Temperature Range: 0C to 240F
- Seal Options: EPDM
- Valve Spring: Stainless Steel
- Valve Option: Valved
- Spilling: <0.015 cc per disconnect at 0 psi; <0.063 cc per disconnect at 200 psi
