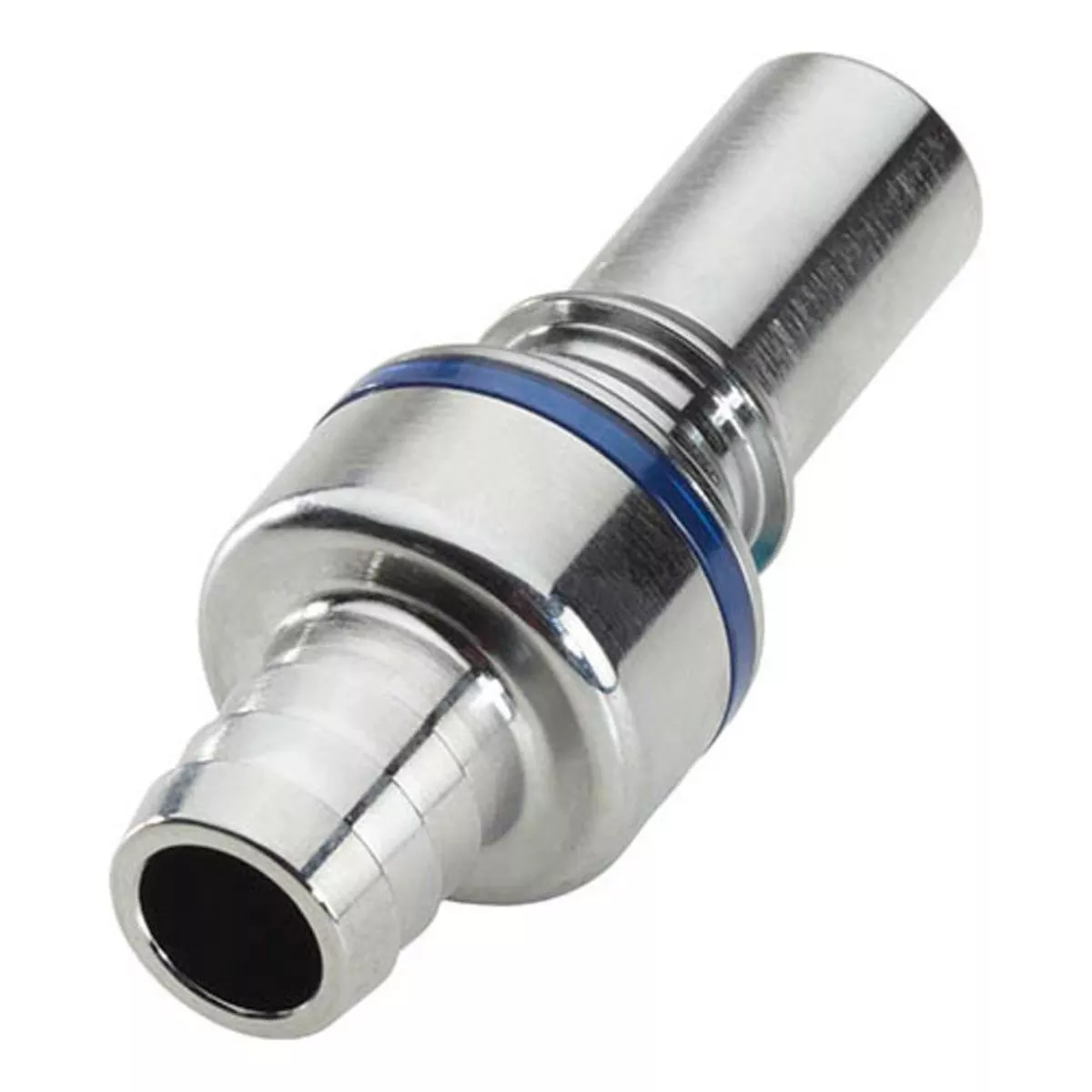

Colders LQ6 Series couplings are designed specifically for liquid cooling applications and utilize a new patent-pending liquid cooling valve technology. The LQ6’s closed-system design and automatic non-spill shutoff valves provide dripless connections and disconnections, even after long-term and repeated use. Also available in red.
Specifications
- Material: Brass
- Pressure Range: Vacuum to 120 psi, 8.3 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Finish: Chrome
- Color Coding: Cool Blue or Warm Red
- Temperature Range: -0F to 240F
- Max Flow at Disconnect: 4.0 gpm
- Valve Spring: 302 Stainless Steel
- Valve: Polysulfone
- Lubricants: Krytox PFPE
- Seal Options: EPDM
- Spillage:
- <0.05 cc per disconnect (at 0 psi)
- <0.125 cc per disco
