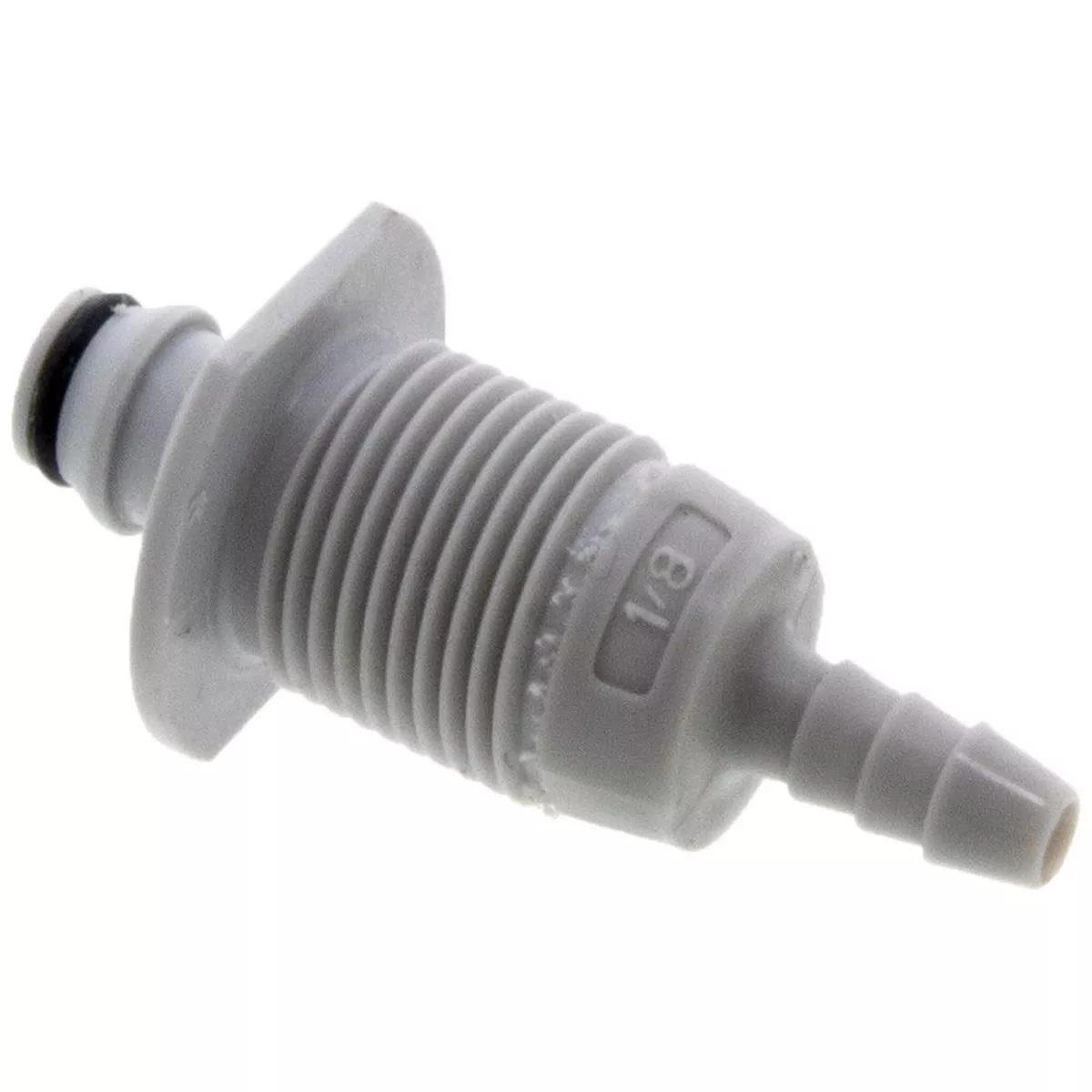

NS1 Series couplings are the smallest plastic non-spill couplings on the market. This compact, closed-system design is packed full of features which includes non-spill shutoff valves that ensure drip-free disconnects, and eliminate the need to purge air from the system. NS1 is perfect for applications using tubing from microbore up to 1/8-inch. Its rotating design allows tubing to move freely without kinks making it ideal for applications that need to be connected and disconnected often.
Specifications:
- Main Components and valves: Glass-Filled Polypropylene, PEEK, Polypropylene
- Material Finish: Molded Gray
- Color: Gray
- Pressure Range:Vacuum to 15 psi, 1.0 bar
- Mounting Option: Panel Mounting
- Valve Option: Valved
- Temperature Range: 32F to 120F
- Valve Spring: 316 Stainless Steel
- Seal Option: EPDM
