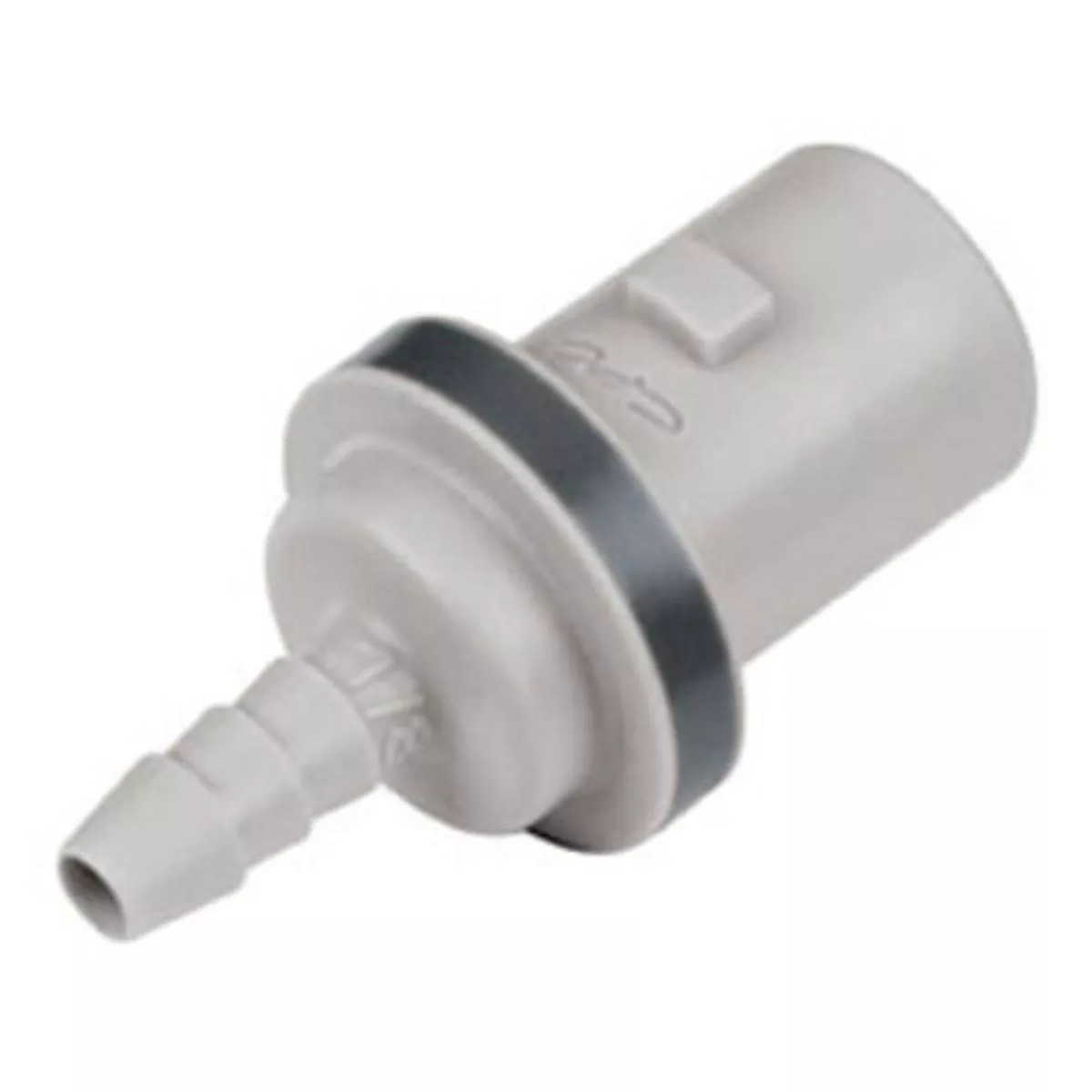

NS2 Series couplings were built on Colder’s proven platform of non-spill valves designed to provide fast, safe and virtually leak-free fluid line connections. NS2 is an easy, twist-to-connect coupling with an integrated locking mechanism and double-sided non-spill shutoff valves. The NS2 is also chemically resistant making it ideal for a diverse range of applications.
Specifications:
- Material: Polypropylene
- Color: Gray with dark gray overmold
- Pressure Range: Vacuum to 45 psi, 3.1 bar
- Mounting Option: Free Floating
- Valve Option: Valved
- Temperature Range: 32F to 120F
- Valve Spring: 316 Stainless Steel
- Seal Option: TPV (Thermoplastic Vulcinizate)
- Spillage: <0.025 cc per disconnect, 0.009cc per connect
- Available in Bags of 25 units
