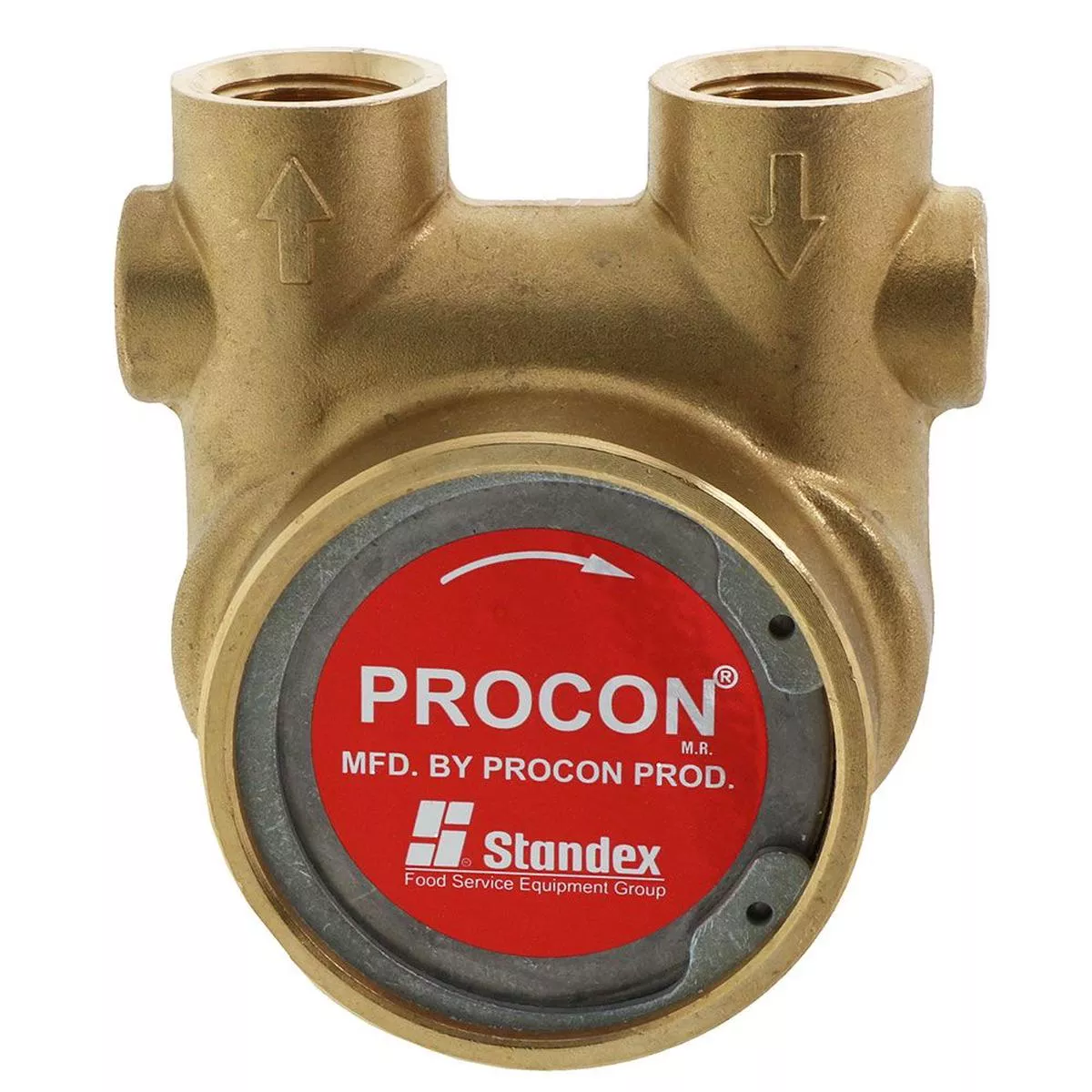

TheProcon Pump NSF Brass 265 GPH 1/2″ NPT (Clamp-on)rotary vane pump is a positive displacement pump. This Series 4 Procon pump is brass with 1143 Bronze Coupling. The inlet and outlet ports are 1/2″ NPT and the pump has a flow-rate of 265 gallons per hour. The seal configuration for the 114B240F11XX uses Nitrile Type 21 which will prevent leakage. The clockwise rotation of the pump operates at a nominal speed of 1725 rotations per minute. The Series 4 pumps are self-priming, so there is virtually no maintenance. The maximum discharge pressure for this pump is 250 PSI. The 114B240F11XX pump is designed to be directly connected to the motor with a stainless steel clamp.
Specification:
- Capacity:265 GPH
- Nominal Speed:1725 RPM
- Maximum Discharge Pressure:250 PSI
- Rotation:Clockwise
- Weight:2.5 lbs
- Port Size:1/2″ NPT
