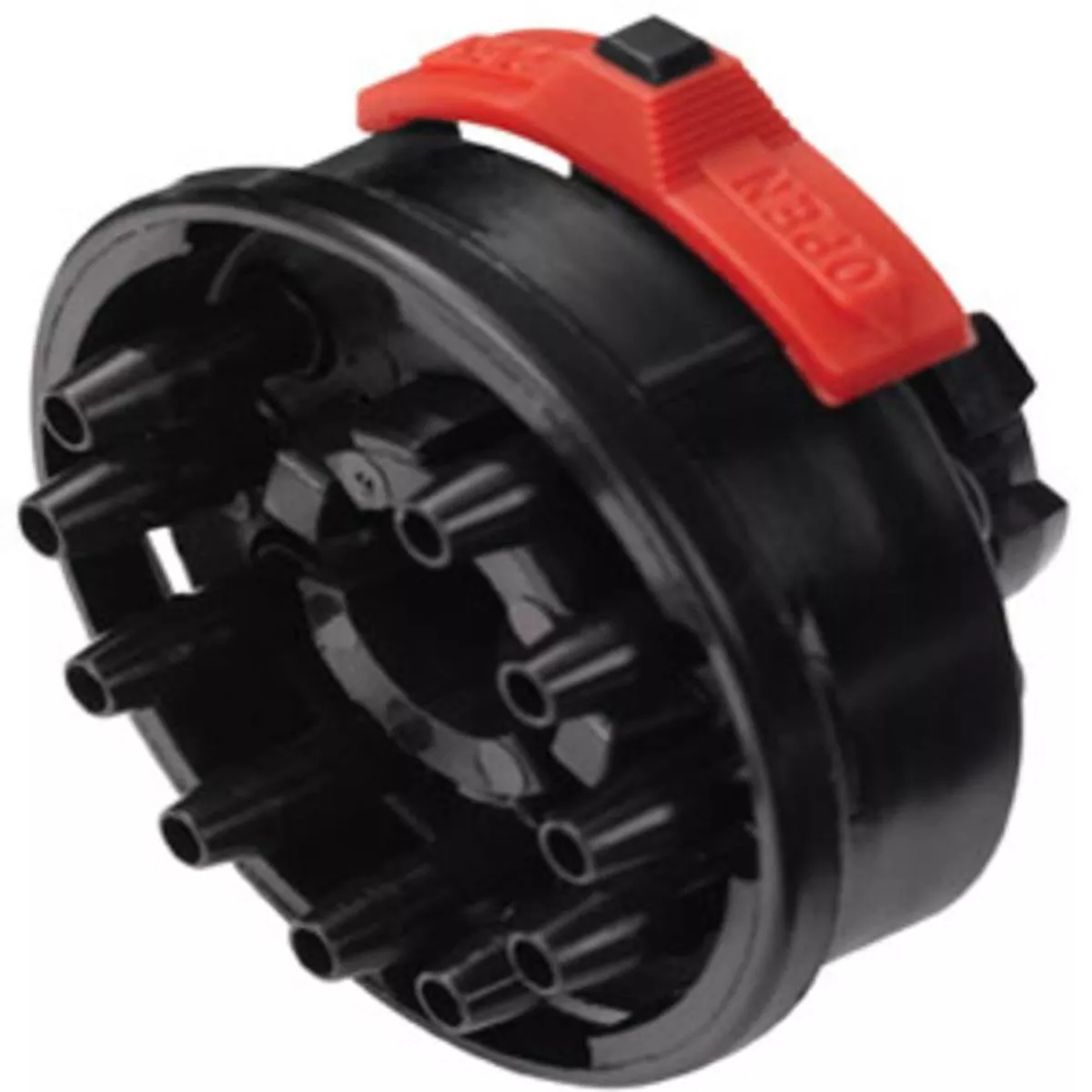

The Tentube coupling provides one easy-to-use quick disconnect for up to ten separate fluid lines. The Tentube is available with valves on the body side in panel mount or in-line configurations for maximum design flexibility. The Tentube can connect and disconnect up to ten lines with the use of a simple slide latch.
Specifications:
- Material: Acetal
- Material Finish: Molded Black
- Color: Black
- Valve Option: Non-Valved
- Mounting Option: Free Floating
- Pressure Range: Vacuum to 100psi, 6.9 bar per line
